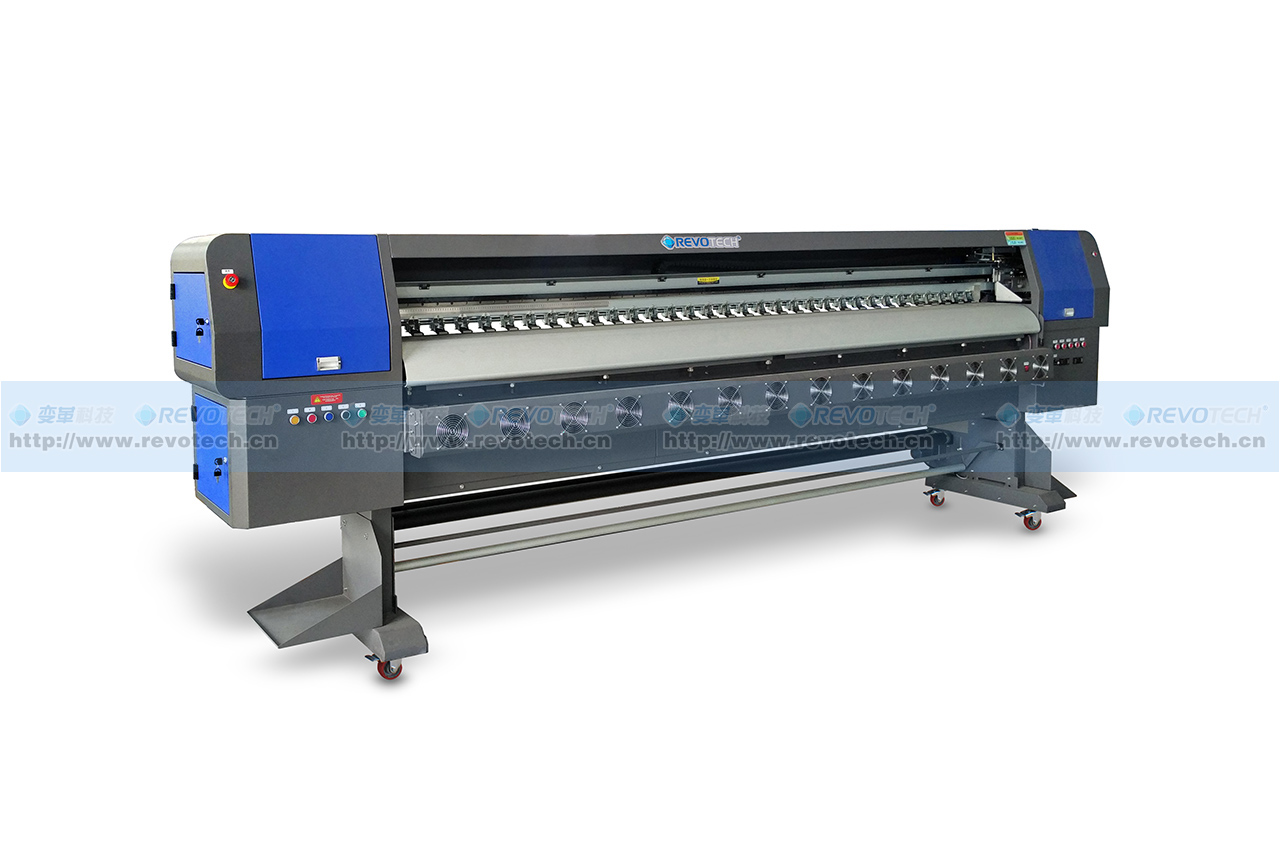

NS-330X桥梁机

2019.08.05

Item		Specification
型号Model		NS-330X
喷头Print head		KONICA 512 35PL		KONICA 512I 30PL
喷头数量Number of Printhead		4	8	4
打印宽度 Maximum Print Width		3.2M(126inch)
打印速度Print Speed	高速High	60 sqm/hr	124 sqm/hr	140 sqm/hr
	标准Standard	47 sqm/hr	95 sqm/hr	90sqm/hr
	精细Ultra	30 sqm/hr	60 sqm/hr	70sqm/hr
颜色Color		CMYK
介质Media		纸，灯箱布，PVC，网格布，背胶 Paper, Advertising Banner, PVC, Mesh Fabrics, Vinyl
最高打印精度Maximum Print quality		720dpi
自动收放布系统 Auto Media System		标配 Equipped
喷头自动清洗系统 Auto Cleaning System		正压清洗 Positive Pressure Cleaning
		防堵闪喷功能 Spray in Idel Function
图像格式Image Format		Bitmap, TIFF, Quark Xpress, JPGEG, AI, EPS, PDF
色彩管理Color Management		国际ICC曲线 Superior ICC Profile
工作流程Work Flow		先RIP后打印或者是边RIP边打印 RIP and Print at the same time/Print after RIP
数据传输接口Print Interface		USB2.0
墨水类型Ink Type		溶剂型墨水Solvent Based Ink
软件Software		Photo Print, Revotech Edition
工作站 Work Station		Microsoft Windows 2000 or Windows XP, Windows 7
供电要求 Power Supply Requirement		220V~(+10%)>15A,50Hz/60Hz
机器尺寸Machine Dimension		45807801500mm
